Single Leaf Steel Weathertight Door With Dogs Marine Outfitting

Name: Single Leaf Steel Weathertight Door With Dogs Marine Outfitting
Brand: Zhongyuan Marine Equipmen
Price: 1 USD

Place of Origin : China

Brand Name : Zhongyuan Marine Equipmen

Certification : CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Model Number : Standard or Customized

MOQ : 1 Unit

Price : Based on quotation

Packaging Details : Export standard pallet or customized packing

Delivery Time : Based on project requirements

Payment Terms : T/T, L/C

Supply Ability : Customized production based on project requirements

Standard : CB 672, GB 10840,CB/T 3007 CB 3041,ISO Standard

Material : Mild Steel, Stainless Steel, Aluminium

Test : Hose Test, Air Test, Chalk Test, as applicable

Dimension : Customized, As client’s drawing, As Standard

Application Type : Weathertight

Leaf Type : Single Leaf, Double Leaf, Single Skin,

Application Location : Accommodation, Deck House, Forecastle, Bulkhead, Boundary

Open Type : Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.

Power resource : Pneumatic, Electric, Hydraulic, Manual,

Closing Device : Anti-Piracy

Classification Certificates : Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.

Contact Now

Single Leaf Steel Weathertight Door With Dogs

Description:

Single Leaf Steel Weathertight Door With Dogs Marine Outfitting iss used for doorway of superstructure above free board deck or deck house.

Main Technical Specification:

Standard: CB 672, GB 10840,CB/T 3007 CB 3041,ISO Standard
Material: Mild Steel, Stainless Steel, Aluminium,
Test: Hose Test, Air Test, Chalk Test, as applicable
Dimension: Customized, As client’s drawing, As Standard
Application Type: Weathertight,
Leaf Type: Single Leaf, Double Leaf, Single Skin,
Application Location: Accommodation, Deck House, Forecastle, Bulkhead, Boundary
Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.
Power resource: Pneumatic, Electric, Hydraulic, Manual,
Closing Device: Anti-Piracy
Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.

Main Technical Parameters:

Clear size H×W	Leaf size H1×W1	Cutout in steel wall		Leaf thickness							Qty of Dogs		Weight Kg
		Cutout in steel wall		Class A.B		Class C			Class D		Qty of Dogs		Weight Kg
		AF,BF, CF,DF	AY,BY, CY.DY	L							Class A,B,C	Class D	Leaf thickness
		AF,BF, CF,DF	AY,BY, CY.DY	≦80	>80		≦80	>80			Class A,B,C	Class D	4	6	8
1000×500	1071×571	1100×600 R80	1100×600 R150	6			4			4	6	3	22	30
1200×600	1271×671	1300×700 R80	1300×700 R150	6			4			4	6	3	30	41
1400×600	1471×671	1500×700 R80	1500×700 R150	6	8		4	6		4	6	3	35	55	77
1400×750	1471×821	1500×850 R80	15008×50 R150	6	8		4	6		4	6	3	45	66	92
1400×900	1471×971	1500×1000 R80	1500×1000 R150		8			6		4	8	4	60	77	107
1600×600	1671×671	1700×700 R80	1700×700 R150		8			6		6	6	3		63	87
1600×750	1671×821	1700×850 R80	1700×850 R150		8			6		6	6	3		75	104
1600×900	1671×971	1700×1000 R80	1700×1000 R150		8			6		6	8	4		88	121
1800×600	1871×671	1900×700 R80	1900×700 R150							6		3		70
1800×750	1871×821	1900×850 R80	1900×850 R150							6		3		76
1800×900	1871×971	1900×1000 R80	1900×1000 R150							6		4		97

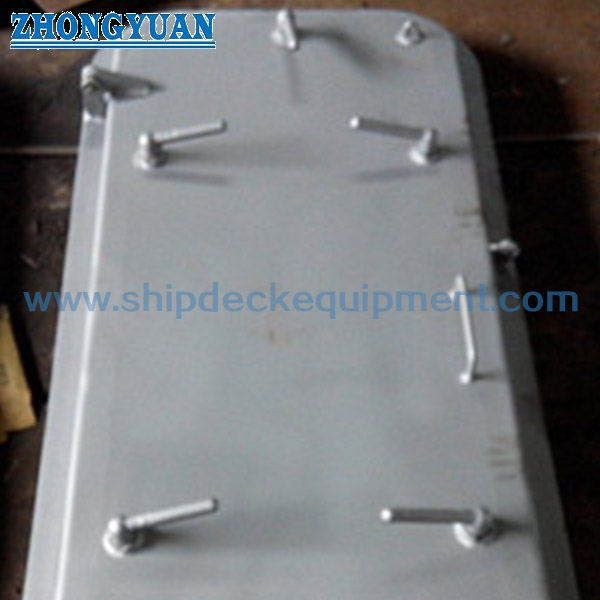

Single Leaf Steel Weathertight Door With Dogs Marine Outfitting

Drawing of Single Leaf Steel Weathertight Door With Dogs Marine Outfitting
