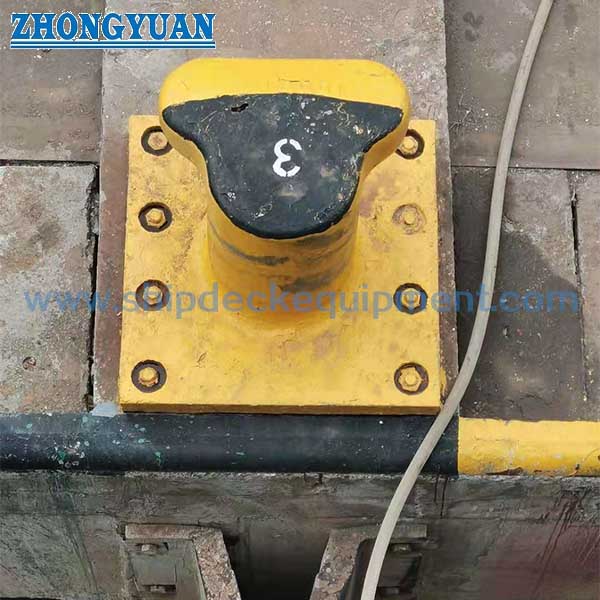

Square Base Casting Steel Curved Type Bollard With Anchorage Ship Mooring Equipment

Name: Square Base Casting Steel Curved Type Bollard With Anchorage Ship Mooring Equipment
Brand: Zhongyuan
Price: 1 USD

Wholesale Square Base Casting Steel Curved Type Bollard With Anchorage Ship Mooring Equipment from china suppliers

Place of Origin : China

Brand Name : Zhongyuan

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Model Number : Standard and Customized

MOQ : 1

Price : As per quotation

Packaging Details : Pallet or Customized

Delivery Time : As per offer

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Bollard Capacity : 5 to 100 tons

Nominal Weight : 70 to 1670kg

Material : cast steel, cast iron

Surface treatment : sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc.

Contact Now

Square Base Casting Steel Curved Type Bollard With Anchorage Ship Mooring Equipment

Description:

We are professional dock equipment manufacturer. We produce all kinds of dock mooring equipment.

Main Technical Specification:

1. Bollard Capacity: 5 to 100 tons;

2. Nominal Weight: 70 to 1670kg;

3. Material: cast steel, cast iron;

4. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.

5. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

Main Technical Parameter:

Type	Size(mm)								Weight(kg)
Type	D	H	T	L	B	h1	h2	h3	Weight(kg)
5T	150	170	20	300	350	30	60	120	70
10T	200	210	20	400	480	40	70	160	140
15T	250	250	20	500	600	50	80	200	245
25T	300	290	21	600	720	65	95	240	420
35T	300	290	25	600	720	65	95	240	440
50T	350	330	29	700	840	70	100	280	665
70T	400	370	33	800	1000	90	120	320	1100
100T	450	410	39	900	1200	95	125	360	1670

Square Base Casting Steel Curved Type Bollard With Anchorage Ship Mooring Equipment

Drawing of Square Base Casting Steel Curved Type Bollard With Anchorage Ship Mooring Equipment
