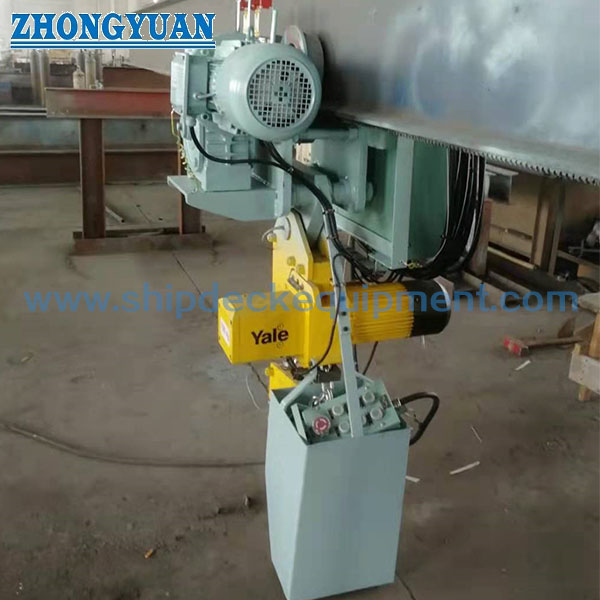

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Place of Origin : China

Brand Name : Zhongyuan Marine Equipmen

Certification : CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Model Number : Standard or Customized

MOQ : 1 Unit

Price : Based on quotation

Packaging Details : Export standard pallet or customized packing

Delivery Time : Based on project requirements

Payment Terms : T/T, L/C

Supply Ability : Customized production based on project requirements

Power : Electric or Manual

Working Temperature : -20 to 50℃ Etc

Surface treatment : sandblasting to S2.5 + 3 layers of epoxy paint, Galvanized

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc

Contact Now

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Description:

Electric trolley crane is used in the engine room, pump room, hangar, etc.. It is either electric or manual operate. We make trolley with good quality. We can provide all the IACS class certificate.

Main Technical Specifications:

  1. Power: Electric or Manual
  2. Working Temperature: -20 to 50℃ Etc.
  3. Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
  4. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

Main Technical Parameters:

SWL
(Ton)

Working

Radius
(m)

Horizontal Traveling

Speed

(m/min)

Hoisting

Speed
(m/min)

Motor

Power
(kw)

Rail Track Radius

(m)

 Power Supply
　0.5 2-18 6 8 0.2/0.8 1

AC380V, 50HZ 3PH

AC415V 50HZ 3PH

AC440

60HZ 3PH
　1 2-30 6 8 0.4/1.5 1.2
　2 2-30 6 8 0.4/3 1.5
　3 2-30 6 8 0.8/4.5 2.5
　5 2-30 6 8 0.8/7.5 2.5
10 2-30 6 8 1.5/13 3

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Drawing of Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment

Single Beam Pump Room Explosive Proof Electric Trolley Crane Hangar Crane Ship Deck Equipment
