17.5-50mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Anchor Windlass with Engine Selection

Place of Origin : China

Brand Name : Zhongyuan Marine Equipmen

Certification : CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Model Number : Standard or Customized

MOQ : 1 Unit

Price : Based on quotation

Packaging Details : Export standard pallet or customized packing

Delivery Time : Based on project requirements

Payment Terms : T/T, L/C

Supply Ability : Customized production based on project requirements

Anchor chain diameter : Φ17.5 to 50mm

Rated tension : 9.5 to 103kN

Working speed : 9m/min

Support load : 38.5 to 617KN

Diesel engine : S1115, S4100, S2100

Worm gear box : WD190, etc.

Gear box : 32F16A

Mooring speed : 9m/min

Number Gypsy : Double or single

Color : Customer specified

Composition : Mainly composed of diesel engine main engine and electrical starting system, worm gear box, gear box, base, wall frame, anchor sprocket, clutch, brake, twisted pair cable drum, reducer, anchor brake, roller, etc.

Classification Certificates : CCS, NK, BV, ABS, DNV, LR, KR, RINA, IRS, RS, CRS

Contact Now

17.5-50mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Anchor Windlass with Engine Selection

Product Overview

A diesel engine driven marine anchor windlass is a type of ship deck equipment used for anchoring and mooring operations.

It consists of a diesel engine, gearbox, gypsy wheel, brake and clutch system, providing reliable pulling force and independent operation without relying on onboard electrical systems.

It is widely used in barges, cargo ships, and offshore vessels.

Quick Specifications & Contact us for model selection and quotation

  • Chain Diameter: 28–50 mm
  • Chain Grade: Grade 2 / Grade 3
  • Drive Type: Diesel Engine
  • Gypsy: Single / Double
  • Warping Head: Optional
  • Mooring Drum: Optional

Main Technical Parameters:

Chain Size
(mm)		 Gypsy Speed
(m/min)		 Working Load
(KN)		 Holding Capacity
(KN)
17.5 ≥9 9.5 38.5
19/22 ≥9 11.7/15.8 42/56
24/26 ≥9 18.7/ 20.3 66.4/77.8
28/30 ≥9 25.5/29.3 89.8/102.5
32 ≥9 33.3 116
34 ≥9 37.6 132
36/38 ≥9 42.2/46.9 146.4/162.6
40/42 ≥9 68/50 402/447
44/46 ≥9 82.3/90 483/526
48/50 ≥9 97/106.3 570/617
Anchor Windlass + Engine Selection Guide

✔ Step 1: Select by Chain Size

Choose the windlass based on anchor chain diameter:

  • 28–32 mm → Small / medium vessels
  • 34–38 mm → Medium vessels
  • 40–50 mm → Large vessels

✔ Step 2: Confirm Working Load

From the table above:

  • 28–30 mm → approx. 25–29 kN
  • 36–38 mm → approx. 42–47 kN
  • 44–50 mm → approx. 82–106 kN

✔ Step 3: Engine Power Selection

The diesel engine power is selected based on working load and efficiency requirements.

Recommended Engine Power Range:

Chain Size (mm)

Working Load (kN)

Recommended Engine Power
28–32 25–33 kN 10–18 kW
34–38 37–47 kN 18–30 kW
40–42 50–68 kN 30–45 kW
44–50 82–106 kN 45–70 kW

✔ Step 4: Engine Configuration Options

  • Engine Brand: Weichai / Changchai / International brands
  • Starting Method: Electric start
  • Cooling: Water cooling
  • Silencer: Included for low noise operation

✔ ✔ Engineering Note

The engine power is selected according to classification society rules and actual working conditions. Final configuration should be confirmed based on project requirements.

Structure & Components

  • Diesel engine | Worm gearbox & transmission system | Gypsy wheel | Brake system | Clutch | Base frame | Warping head (optional) | Mooring drum (optional)

How It Works

The diesel engine drives the windlass through a gearbox or hydraulic system.

The gypsy wheel controls the anchor chain movement, while the brake and clutch ensure safe operation.

Applications

  • Barge anchoring | Cargo ships | Offshore platforms | Fishing vessels | Port operations

Certifications & Advantages

Certifications

CCS / ABS / DNV / LR / BV / KR / RINA / IRS / RS / CRS

Advantages

  • Independent diesel power
  • Stable performance
  • Cost-effective
  • Easy maintenance

Drawing & Photos

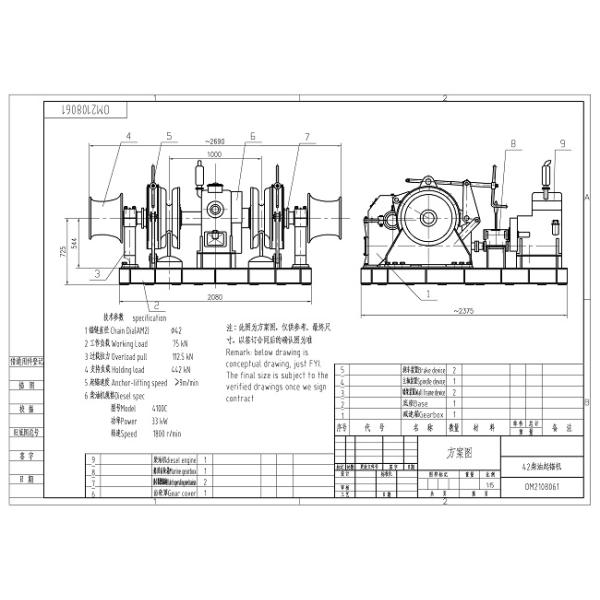

General arrangement drawing

17.5-50mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Anchor Windlass with Engine Selection

  • Product photos
  • 17.5-50mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Anchor Windlass with Engine Selection

Ordering Information

  • MOQ: 1 Unit
  • Delivery Time: 90 Days
  • Payment: T/T, L/C
  • Customization: Available

FAQ

Q1: How to choose the correct engine power?
Based on chain size, working load, and operating conditions.

Q2: Can the engine brand be customized?
Yes, both local and international brands are available.

Q3: Is hydraulic drive available?
Yes, optional hydraulic system can be provided.


Product Tags:

26kN marine anchor windlass



9m/min ship anchor windlass



Windlass Ship Deck Equipment
